HomeAdvantage II

Electric Tankless
HA011240

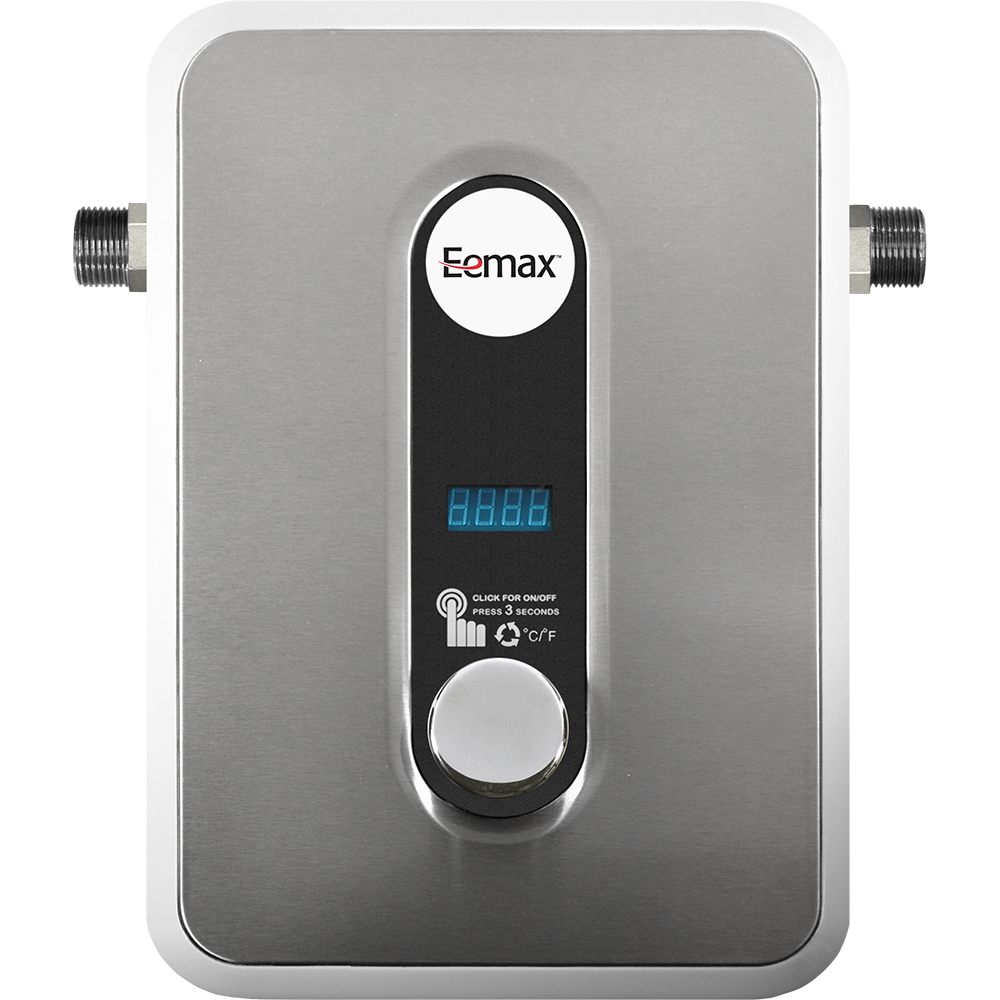

11kW 240V Electric Tankless Water Heater
For residental single point-of-use or multiple fixtures
On-demand, consistent, and endless hot water
Compact design with temperature control from 80°F to 140°F
Documents
Specifications
Specifications
Electrical Specifications
Power: 11kW
Volts: 240V
Phase: 1
Amperage: 0
Recommended Wire Size: 8 AWG
Performance Specifications
GPM Turn On: 0.3
Physical Max Volume: 0 gpm
Minimum Operating Temp: 80
Max Operating Temp: 140
Minimum Operating Pressure: 35 PSI
Max Pressure Rating: 150 PSI
Physical Specifications
Height: 11 inches
Width: 8 inches
Depth: 3 inches
Weight: -
Color: Stainless Steel
Cover Material: Stainless Steel
Element Type: Immersion
Element Material: Copper
Available Configurations
Adjustable Thermostat: True
NEMA Cabinets Available:
Single Lav Model Available: No
Dual Lav Model Available: No
Multi Lave Model Available: No
Sanitation Model Available: No
Tepid Water Model Available: No
De-Ionized: No
Plumbing Configuration
Water Connection: 1/2 (5/8 OD)"
NPT or Compression: Compression
Plumbing Configuration: Side feed
Hot or Cold Feed: Pre-heated or cold water feed
Aerator Supplied:
# of Aerators Supplied: 0
GPM Flow Rate of Aerator Supplied: 6
Parts Available
Element: HA-P002
Board: HA-P024-011
Board #2:
Relay/Contactor: Call factory
Eco: Call factory
Triac: Call factory
Transformer: Call factory
Flow Meter: Call factory
Optical Board:
Are Cabinets Available: No
Certifications/Qualifications
